Turboflex
| Size | DN 12-1200mm |
|---|---|
| Length | Up to 20mt (dependent on hose I.D) |
| Duty | Suction and discharge |
| Max working pressure | -100 to + 8000kpa (dependant on hose I.D) |
| Reinforcement | Spiral synthetic fabric |
| Tube | ABRASATECH™ |
| Cover | Abrasion and UV resistant rubber |
| Ends | Beaded, Flanged, In Built Coupling (NPT, BSP, Victaulic, fixed or |
| Flange patterns | Flanges to all standards (custom flange patterns available on request) |
| Connection material | Hot dipped gal (as standard), Stainless steel (SS316, SS304), carbon steel, painted |
| Temp | -30/+75C |
| Safety Factor | 4:1 |
Description

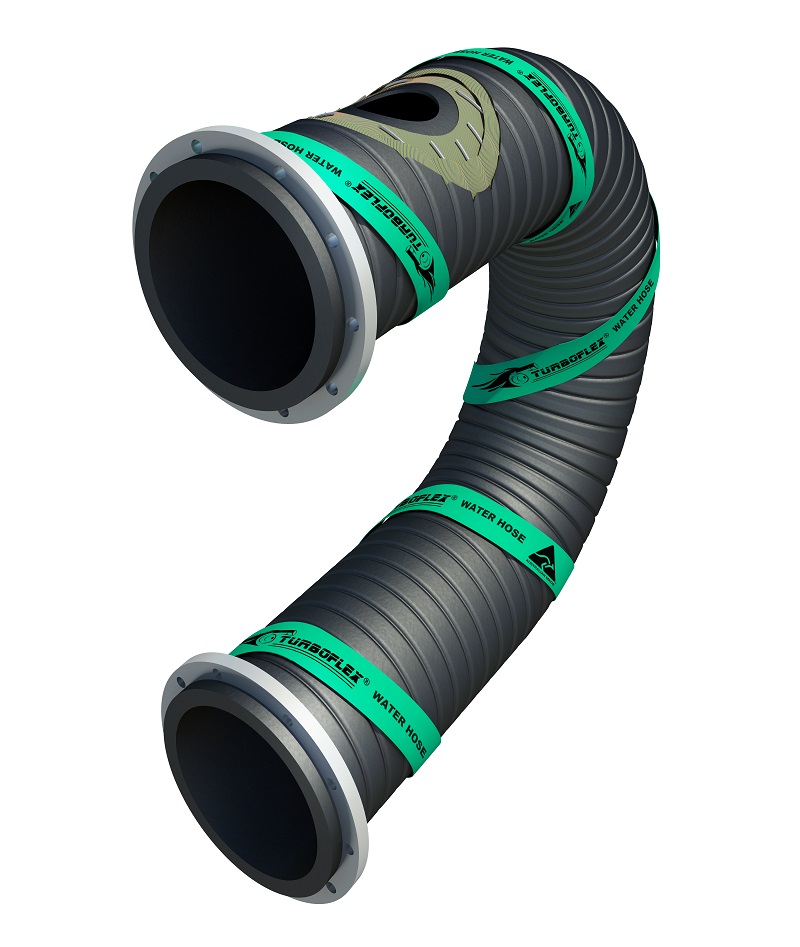

TURBOFLEX™ hoses are specially designed to maximize hose flexibility where tight bend radius` are paramount. Using unique hose construction, exclusively designed and used by Pacific Flow Technology, we are able to achieve the most flexible hand-made hoses available to the market. TURBOFLEX™ water and mining hoses are able to achieve a market-leading 2D bend radius. This hose design can also be made with our extensive range of tube liners upon request, to suit other applications. Please refer to our datasheets for more technical info.
