Steam

SizeDN 50-100mm
Length Up to 20mt
DutySuction and discharge, discharge only (no wire reinforcement)
Max working pressure700kpa
ReinforcementSpiral synthetic fabric
Tube FLOWTECH™
CoverFLOWTECH™
Ends Beaded, Flanged, In Built Coupling (NPT, BSP, Victaulic, fixed or swivel, flange), plain cut, raised, cuffed. Others available on request.
Flange patternsFlanges to all standards (custom flange patterns available on request)
Connection materialHot dipped gal (as standard), Stainless steel (SS316, SS304), carbon steel, painted
Temp-30/+135C
Safety Factor 6:1
Make an enquiry

Description

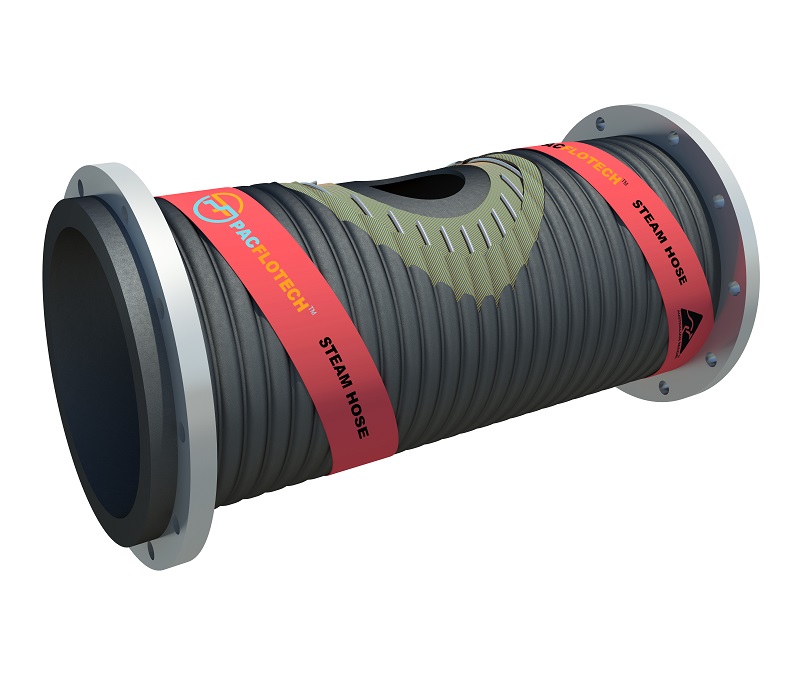

Pacflotech steam hose is a general purpose steam handling hose designed to withstand high temp applications. Using our  FLOWTECH™ high temp EPDM, these hoses are able to withstand temperatures of up to 135C without deforming the hose.
