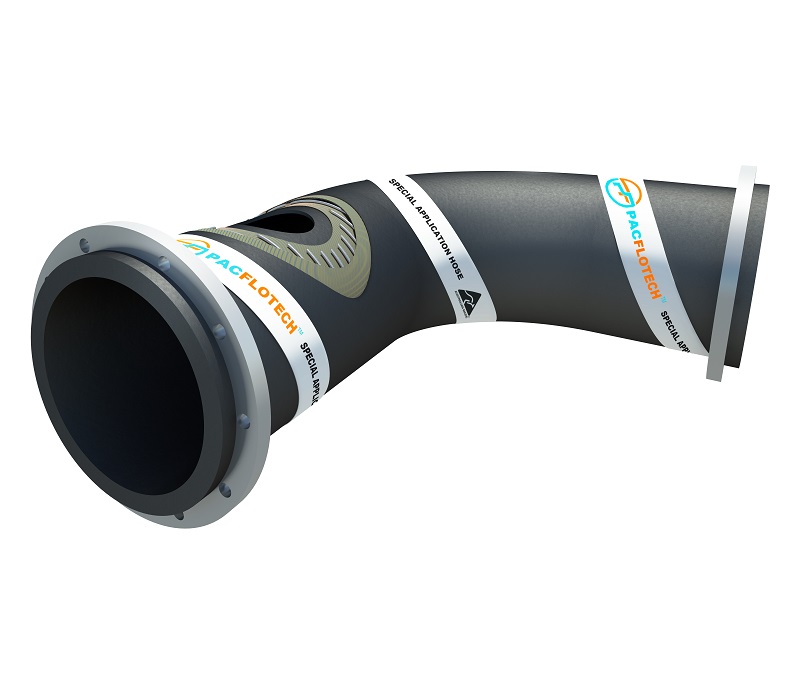

Pre-Formed Bend
| Size | DN 12-1200mm |
|---|---|
| Duty | Suction and discharge, discharge only (no wire reinforcement) |
| Bend Angle | 12 ˚, 22.5˚, 30˚, 45˚, 60˚, 90˚, (custom angles available upon request) |
| Bend Radius | 1.5D, 3D, 5D (custom radiuses available) |
| Max working pressure | -100 to + 5000kpa (dependant on hose I.D) |
| Reinforcement | Spiral synthetic fabric |
| Tube | ABRASATECH™ |
| Cover | Abrasion and UV resistant rubber |
| Ends | Beaded, Flanged, plain cut, raised, cuffed |
| Flange patterns | Flanges to all standards (custom flange patterns available on request) |
| Connection material | Hot dipped gal (as standard), Stainless steel (SS316, SS304), carbon steel, painted |
| Temp | -30/+70C |
| Safety Factor | 4:1 |
Description
PFT have the capability to construct pre-formed bends which allow for a tighter bend radius then what can be achieved with straight length hose. Our bends are made using the same construction as straight length hose, and the flexible rubber design allows for misalignment and reduces vibration. All bends are available in a range of bend angles and radiuses.
