Muff coupling
| Size | DN 50, 75, 100, 125, 150, 200, 250, 300, 350 |
|---|---|
| Length | Up to 20mt (dependent on hose I.D) |
| Duty | Suction and discharge |
| Max working pressure | 700kpa (as standard) |
| Reinforcement | Spiral synthetic fabric |
| Tube | ABRASATECH™ |
| Cover | Abrasion and UV resistant rubber |
| Ends | Plain cut one end, plain or beaded other end |
| Flange patterns | Flanges to all standards (custom flange patterns available on request) |
| Connection material | Hot dipped gal (as standard), Stainless steel (SS316, SS304), carbon steel, painted |
| Temp | -30/+70C |
| Safety Factor | 4:1 |
Description

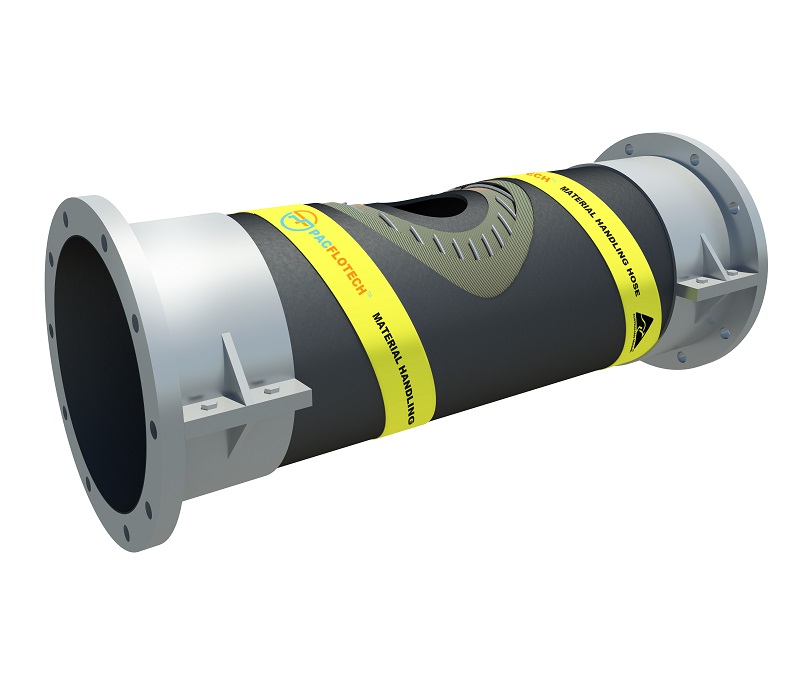

Hard walled mining hose universally designed to be used in conjunction with split muff couplings. With one or both ends plain cut, it allows the hose to be cut to length on site ensuring the hose length exactly fits the requirement. Our muff coupling hose is made in Australia using our exclusive abrasion resistant liner offering unparalleled performance verses generic imported hose.
