Acid & Chemical

SizeDN 12-1200mm
Length Up to 20mt (dependent on hose I.D)
DutySuction and discharge, discharge only (no wire reinforcement)
Max working pressure-100 to + 8000kpa (dependant on hose I.D)
ReinforcementSpiral synthetic fabric
Tube BUTATECH™, HYPATECH™, FLOWTECH™, NEOTECH FRAS™
CoverFLOWTECH™
EndsBeaded, Flanged, In Built Coupling (NPT, BSP, Victaulic, fixed or swivel, flange), plain cut, raised, cuffed. Others available on request.
Flange patternsFlanges to all standards (custom flange patterns available on request)
Connection materialHot dipped gal (as standard), Stainless steel (SS316, SS304), carbon steel, painted
Temp-30/+130C
Safety Factor4:1
Make an enquiry

Description

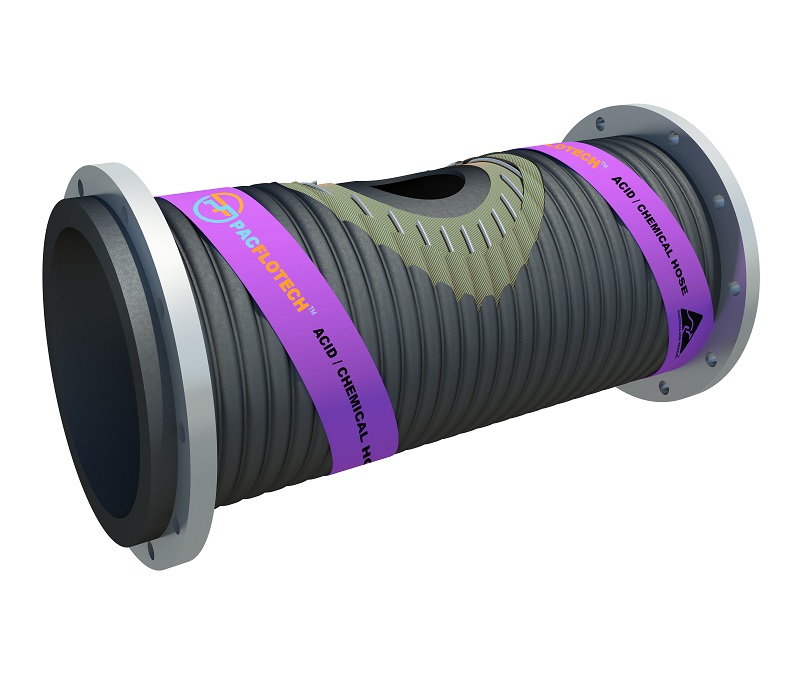

Pacflotech acid and chemical hose are suitable for a wide range of chemical applications using, chemical resistant rubber. With a superior range of chemically resistant rubbers in stock, we can tailor each hose to suit the exact chemical composition of material going through the hose.

Pacflotech is also one of the only hose manufacturers in the world that has developed the ability to hot cure butyl tube liners into our hoses. This can provide increased chemical and temperature resistance up to 135C, whilst also maintaining abrasion resistant qualities. Compared to other butyl lined hoses on the market, ours are vulacanised into the hose which minimises any risk of the liner detaching from the hose under suction applications.
